Flow-To-Wire Turbines

What is a Flow-to-Wire?
As gravity-fed water continuously flows through pipelines for various applications, such as drinking water, it offers the capability to generate electricity year-round, 24 hours per day. Excess pressure occurs where water is stored at significantly higher elevations or delivered at higher pressures than the customers it serves.
Cities, investor owned water utilities, irrigation and industrial operations typically install pressure reduction valves (PRVs – hydraulic devices that maintain pre-set downstream pressure) or flow control valves to bring pressure into balance for localized operational purposes. Drinking water operators and industrial manufacturers also maintain pressure reduction vaults to relieve the excess pressure for specific processes. PRVs generally do not perform useful work with the dissipated pressure, and simply release it as waste heat. Rentricity’s Flow-to-Wire (F2W) energy recovery systems convert this excess pressure into clean electricity while maintaining the flow and pressures required for a respective water operation.
Key Benefits

Efficiency
F2W’s offer high capacity and efficiency factors in the 80% range.

Certified Safe
F2W’s are the only Pump-as-Turbines with NSF safety certification.

Long Life
F2W’s have over a 50 year operating history and can last over 40 years with minimal maintenance
Hydraulics, hydraulics, hydraulics!
Rentricity has steadily grown an extensive portfolio of projects; 26 commercial installations as of 2023 across the US and Canada. These projects range from 5 – 360 kW with five projects including multiple, different sized F2W turbines. Rentricity strength is in the hydraulic design and optimization to  provide the greatest value that will customize your water infrastructure and maximize net annual clean power generation and return on your investment.
The first step in the F2W Turbine selection is to fully understand the historical flow/pressure profile and any future trends that may change this record.
A hydraulic profile is created and mapped in one or more of several possible forms for annual periods such as:

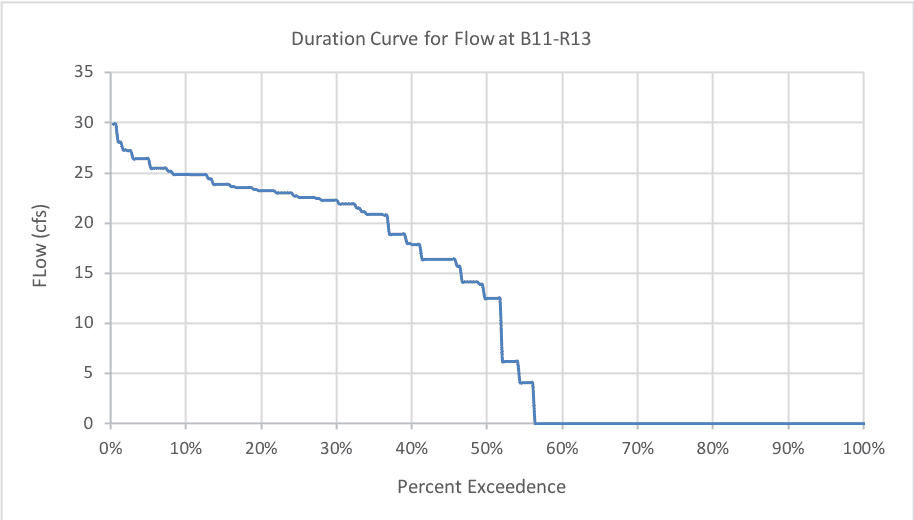

- Flow Duration Curve for varying flow with fixed pressure and;
- Exceedance profiles that map the typical flow for varying pressures. Bar charts or curves provide individual and cumulative percent of time those hydraulics conditions exist over an annual cycle.
F2W selection becomes relatively straight forward for sites with fixed pressure.  However, maximizing energy recovered under the flow duration curve becomes more complex with varying hydraulics due in part to diurnal or seasonal characteristics of most sites. Typical pumps as turbines are constrained to operating at a single point along the system resistance curve, however, F2W’s can better match up the turbine output and allow it to operate over a significant portion of its head/flow curve. This can be done efficiently and reliably with Rentricity’s SEMS control system for optimal clean energy output.
For sites with a wide range of hydraulics; e.g. flows operating over several or more multiples and heads varying (30-50%), multiple, different sized F2W turbines may be the best solution. Rentricity’s analytical tools allow our team to help our clients zero in on the best turbine(s) and SEMS packages that can maximize total annual net generation (kWh) and best return on investment.  You can Select a F2W turbine below.
Select a Flow to Wire Turbine
1200 RPM, Flow-to-Wire, Turbines
NSF Certified, Pending NSF Certification
Model: 3TR1 - 1200 RPM
Output Range: 4 to 7kW


Standard Integrated Configuration
Turbine: Ductile Iron/Close Coupled
Seal: Mechanical Shaft Seal
Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase



Optional Features
Safe Water/Low Lead NSF 61/372 Certification
Horizontal (frame mount) or Vertical (support stand) Configuration
Stainless Steel
Total Enclosed Fan-Cooled Generator (TEFC)
Fresh Water/Finished Consumable Water
Single phase, 600 volt 3 phase generators
1200 and 1800 RPM Generators
Speed Sensing (Tachometer)
Model: 3TR2 - 1200 RPM
Output Range: 5 to 25kW


Standard Integrated Configuration
Turbine: Ductile Iron/Close Coupled
Seal: Mechanical Shaft Seal
Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase



Optional Features
Safe Water/Low Lead NSF 61/372 Certification
Horizontal (frame mount) or Vertical (support stand) Configuration
Stainless Steel
Total Enclosed Fan-Cooled Generator (TEFC)
Fresh Water/Finished Consumable Water
Single phase, 600 volt 3 phase generators
1200 and 1800 RPM Generators
Speed Sensing (Tachometer)
Standard Integrated Configuration Turbine: Ductile Iron/Close Coupled Seal: Mechanical Shaft Seal Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase Optional Features Safe Water/Low Lead NSF 61/372 Certification Horizontal (frame mount) or Vertical (support stand) Configuration Stainless Steel Total Enclosed Fan-Cooled Generator (TEFC) Fresh Water/Finished Consumable Water Single phase, 600 volt 3 phase generators 1200 and 1800 RPM Generators Speed Sensing (Tachometer)Model: 3TR3 - 1200 RPM
Output Range: 5 to 25kW
Model: 4TR2 - 1200 RPM
Output Range: 5 to 15kW



Standard Integrated Configuration
Turbine: Ductile Iron/Close Coupled
Seal: Mechanical Shaft Seal
Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase



Optional Features
Safe Water/Low Lead NSF 61/372 Certification
Horizontal (frame mount) or Vertical (support stand) Configuration
Stainless Steel
Total Enclosed Fan-Cooled Generator (TEFC)
Fresh Water/Finished Consumable Water
Single phase, 600 volt 3 phase generators
1200 and 1800 RPM Generators
Speed Sensing (Tachometer)
Model: 4TR3 - 1200 RPM
Output Range: 5 to 20kW


Standard Integrated Configuration
Turbine: Ductile Iron/Close Coupled
Seal: Mechanical Shaft Seal
Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase



Optional Features
Safe Water/Low Lead NSF 61/372 Certification
Horizontal (frame mount) or Vertical (support stand) Configuration
Stainless Steel
Total Enclosed Fan-Cooled Generator (TEFC)
Fresh Water/Finished Consumable Water
Single phase, 600 volt 3 phase generators
1200 and 1800 RPM Generators
Speed Sensing (Tachometer)
Model: 4TR4 - 1200 RPM
Output Range: 15 to 35kW


Standard Integrated Configuration
Turbine: Ductile Iron/Close Coupled
Seal: Mechanical Shaft Seal
Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase



Optional Features
Safe Water/Low Lead NSF 61/372 Certification
Horizontal (frame mount) or Vertical (support stand) Configuration
Stainless Steel
Total Enclosed Fan-Cooled Generator (TEFC)
Fresh Water/Finished Consumable Water
Single phase, 600 volt 3 phase generators
1200 and 1800 RPM Generators
Speed Sensing (Tachometer)
Standard Integrated Configuration Turbine: Ductile Iron/Close Coupled Seal: Mechanical Shaft Seal Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase Optional Features Safe Water/Low Lead NSF 61/372 Certification Horizontal (frame mount) or Vertical (support stand) Configuration Stainless Steel Total Enclosed Fan-Cooled Generator (TEFC) Fresh Water/Finished Consumable Water Single phase, 600 volt 3 phase generators 1200 and 1800 RPM Generators Speed Sensing (Tachometer)Model: 5TR1 - 1200 RPM
Output Range: 2 to 11kW
Model: 5TR1A - 1200 RPM
Output Range: 4 to 14kW


Standard Integrated Configuration
Turbine: Ductile Iron/Close Coupled
Seal: Mechanical Shaft Seal
Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase



Optional Features
Safe Water/Low Lead NSF 61/372 Certification
Horizontal (frame mount) or Vertical (support stand) Configuration
Stainless Steel
Total Enclosed Fan-Cooled Generator (TEFC)
Fresh Water/Finished Consumable Water
Single phase, 600 volt 3 phase generators
1200 and 1800 RPM Generators
Speed Sensing (Tachometer)
Standard Integrated Configuration Turbine: Ductile Iron/Close Coupled Seal: Mechanical Shaft Seal Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase Optional Features Safe Water/Low Lead NSF 61/372 Certification Horizontal (frame mount) or Vertical (support stand) Configuration Stainless Steel Total Enclosed Fan-Cooled Generator (TEFC) Fresh Water/Finished Consumable Water Single phase, 600 volt 3 phase generators 1200 and 1800 RPM Generators Speed Sensing (Tachometer)Model: 5TR2 - 1200 RPM
Output Range: 10 to 60kW
Model: 5TR3 - 1200 RPM
Output Range: 10 to 45kW


Standard Integrated Configuration
Turbine: Ductile Iron/Close Coupled
Seal: Mechanical Shaft Seal
Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase



Optional Features
Safe Water/Low Lead NSF 61/372 Certification
Horizontal (frame mount) or Vertical (support stand) Configuration
Stainless Steel
Total Enclosed Fan-Cooled Generator (TEFC)
Fresh Water/Finished Consumable Water
Single phase, 600 volt 3 phase generators
1200 and 1800 RPM Generators
Speed Sensing (Tachometer)
Standard Integrated Configuration Turbine: Ductile Iron/Close Coupled Seal: Mechanical Shaft Seal Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase Optional Features Safe Water/Low Lead NSF 61/372 Certification Horizontal (frame mount) or Vertical (support stand) Configuration Stainless Steel Total Enclosed Fan-Cooled Generator (TEFC) Fresh Water/Finished Consumable Water Single phase, 600 volt 3 phase generators 1200 and 1800 RPM Generators Speed Sensing (Tachometer)Model: 5TR4 - 1200 RPM
Output Range: 15 to 65kW
Model: 5TR5A - 1200 RPM
Output Range: 3 to 13kW


Standard Integrated Configuration
Turbine: Ductile Iron/Close Coupled
Seal: Mechanical Shaft Seal
Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase



Optional Features
Safe Water/Low Lead NSF 61/372 Certification
Horizontal (frame mount) or Vertical (support stand) Configuration
Stainless Steel
Total Enclosed Fan-Cooled Generator (TEFC)
Fresh Water/Finished Consumable Water
Single phase, 600 volt 3 phase generators
1200 and 1800 RPM Generators
Speed Sensing (Tachometer)
Standard Integrated Configuration Turbine: Ductile Iron/Close Coupled Seal: Mechanical Shaft Seal Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase Optional Features Safe Water/Low Lead NSF 61/372 Certification Horizontal (frame mount) or Vertical (support stand) Configuration Stainless Steel Total Enclosed Fan-Cooled Generator (TEFC) Fresh Water/Finished Consumable Water Single phase, 600 volt 3 phase generators 1200 and 1800 RPM Generators Speed Sensing (Tachometer)Model: 6TR1 - 1200 RPM
Output Range: 5 to 25kW
Standard Integrated Configuration Turbine: Ductile Iron/Close Coupled Seal: Mechanical Shaft Seal Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase Optional Features Safe Water/Low Lead NSF 61/372 Certification Horizontal (frame mount) or Vertical (support stand) Configuration Stainless Steel Total Enclosed Fan-Cooled Generator (TEFC) Fresh Water/Finished Consumable Water Single phase, 600 volt 3 phase generators 1200 and 1800 RPM Generators Speed Sensing (Tachometer)Model: 6TR2 - 1200 RPM
Output Range: 15 to 100kW
Standard Integrated Configuration Turbine: Ductile Iron/Close Coupled Seal: Mechanical Shaft Seal Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase Optional Features Safe Water/Low Lead NSF 61/372 Certification Horizontal (frame mount) or Vertical (support stand) Configuration Stainless Steel Total Enclosed Fan-Cooled Generator (TEFC) Fresh Water/Finished Consumable Water Single phase, 600 volt 3 phase generators 1200 and 1800 RPM Generators Speed Sensing (Tachometer)Model: 6TR3 - 1200 RPM
Output Range: 10 to 60kW
Model: 6TR4 - 1200 RPM
Output Range: 10 to 80kW


Standard Integrated Configuration
Turbine: Ductile Iron/Close Coupled
Seal: Mechanical Shaft Seal
Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase



Optional Features
Safe Water/Low Lead NSF 61/372 Certification
Horizontal (frame mount) or Vertical (support stand) Configuration
Stainless Steel
Total Enclosed Fan-Cooled Generator (TEFC)
Fresh Water/Finished Consumable Water
Single phase, 600 volt 3 phase generators
1200 and 1800 RPM Generators
Speed Sensing (Tachometer)
Standard Integrated Configuration Turbine: Ductile Iron/Close Coupled Seal: Mechanical Shaft Seal Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase Optional Features Safe Water/Low Lead NSF 61/372 Certification Horizontal (frame mount) or Vertical (support stand) Configuration Stainless Steel Total Enclosed Fan-Cooled Generator (TEFC) Fresh Water/Finished Consumable Water Single phase, 600 volt 3 phase generators 1200 and 1800 RPM Generators Speed Sensing (Tachometer)Model: 8TR3 - 1200 RPM
Output Range: 10 to 110kW
Standard Integrated Configuration Turbine: Ductile Iron/Close Coupled Seal: Mechanical Shaft Seal Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase Optional Features Safe Water/Low Lead NSF 61/372 Certification Horizontal (frame mount) or Vertical (support stand) Configuration Stainless Steel Total Enclosed Fan-Cooled Generator (TEFC) Fresh Water/Finished Consumable Water Single phase, 600 volt 3 phase generators 1200 and 1800 RPM Generators Speed Sensing (Tachometer)Model: 10TR1 - 1200 RPM
Output Range: 10 to 60kW
Model: 10TR2 - 1200 RPM
Output Range: 15 to 95kW



Standard Integrated Configuration
Turbine: Ductile Iron/Close Coupled
Seal: Mechanical Shaft Seal
Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase



Optional Features
Safe Water/Low Lead NSF 61/372 Certification
Horizontal (frame mount) or Vertical (support stand) Configuration
Stainless Steel
Total Enclosed Fan-Cooled Generator (TEFC)
Fresh Water/Finished Consumable Water
Single phase, 600 volt 3 phase generators
1200 and 1800 RPM Generators
Speed Sensing (Tachometer)
1800 RPM, Flow-to-Wire, Turbines
NSF Certified, Pending NSF Certification
Model: 3TR1 - 1800 RPM
Output Range: 5 to 20kW


Standard Integrated Configuration
Turbine: Ductile Iron/Close Coupled
Seal: Mechanical Shaft Seal
Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase



Optional Features
Safe Water/Low Lead NSF 61/372 Certification
Horizontal (frame mount) or Vertical (support stand) Configuration
Stainless Steel
Total Enclosed Fan-Cooled Generator (TEFC)
Fresh Water/Finished Consumable Water
Single phase, 600 volt 3 phase generators
1200 and 1800 RPM Generators
Speed Sensing (Tachometer)
Standard Integrated Configuration Turbine: Ductile Iron/Close Coupled Seal: Mechanical Shaft Seal Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase Optional Features Safe Water/Low Lead NSF 61/372 Certification Horizontal (frame mount) or Vertical (support stand) Configuration Stainless Steel Total Enclosed Fan-Cooled Generator (TEFC) Fresh Water/Finished Consumable Water Single phase, 600 volt 3 phase generators 1200 and 1800 RPM Generators Speed Sensing (Tachometer)Model: 3TR2 - 1800 RPM
Output Range: 8 to 55kW
Standard Integrated Configuration Turbine: Ductile Iron/Close Coupled Seal: Mechanical Shaft Seal Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase Optional Features Safe Water/Low Lead NSF 61/372 Certification Horizontal (frame mount) or Vertical (support stand) Configuration Stainless Steel Total Enclosed Fan-Cooled Generator (TEFC) Fresh Water/Finished Consumable Water Single phase, 600 volt 3 phase generators 1200 and 1800 RPM Generators Speed Sensing (Tachometer)Model: 3TR3 - 1800 RPM
Output Range: 10 to 90kW
Model: 4TR2 - 1800 RPM
Output Range: 5 to 60kW



Standard Integrated Configuration
Turbine: Ductile Iron/Close Coupled
Seal: Mechanical Shaft Seal
Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase



Optional Features
Safe Water/Low Lead NSF 61/372 Certification
Horizontal (frame mount) or Vertical (support stand) Configuration
Stainless Steel
Total Enclosed Fan-Cooled Generator (TEFC)
Fresh Water/Finished Consumable Water
Single phase, 600 volt 3 phase generators
1200 and 1800 RPM Generators
Speed Sensing (Tachometer)
Standard Integrated Configuration Turbine: Ductile Iron/Close Coupled Seal: Mechanical Shaft Seal Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase Optional Features Safe Water/Low Lead NSF 61/372 Certification Horizontal (frame mount) or Vertical (support stand) Configuration Stainless Steel Total Enclosed Fan-Cooled Generator (TEFC) Fresh Water/Finished Consumable Water Single phase, 600 volt 3 phase generators 1200 and 1800 RPM Generators Speed Sensing (Tachometer)Model: 4TR3 - 1800 RPM
Output Range: 5 to 60kW
Standard Integrated Configuration Turbine: Ductile Iron/Close Coupled Seal: Mechanical Shaft Seal Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase Optional Features Safe Water/Low Lead NSF 61/372 Certification Horizontal (frame mount) or Vertical (support stand) Configuration Stainless Steel Total Enclosed Fan-Cooled Generator (TEFC) Fresh Water/Finished Consumable Water Single phase, 600 volt 3 phase generators 1200 and 1800 RPM Generators Speed Sensing (Tachometer)Model: 4TR4 - 1800 RPM
Output Range: 15 to 80kW
Standard Integrated Configuration Turbine: Ductile Iron/Close Coupled Seal: Mechanical Shaft Seal Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase Optional Features Safe Water/Low Lead NSF 61/372 Certification Horizontal (frame mount) or Vertical (support stand) Configuration Stainless Steel Total Enclosed Fan-Cooled Generator (TEFC) Fresh Water/Finished Consumable Water Single phase, 600 volt 3 phase generators 1200 and 1800 RPM Generators Speed Sensing (Tachometer)Model: 4TR5 - 1800 RPM
Output Range: 3 to 12kW
Standard Integrated Configuration Turbine: Ductile Iron/Close Coupled Seal: Mechanical Shaft Seal Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase Optional Features Safe Water/Low Lead NSF 61/372 Certification Horizontal (frame mount) or Vertical (support stand) Configuration Stainless Steel Total Enclosed Fan-Cooled Generator (TEFC) Fresh Water/Finished Consumable Water Single phase, 600 volt 3 phase generators 1200 and 1800 RPM Generators Speed Sensing (Tachometer)Model: 5TR1 - 1800 RPM
Output Range: 5 to 35kW
Standard Integrated Configuration Turbine: Ductile Iron/Close Coupled Seal: Mechanical Shaft Seal Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase Optional Features Safe Water/Low Lead NSF 61/372 Certification Horizontal (frame mount) or Vertical (support stand) Configuration Stainless Steel Total Enclosed Fan-Cooled Generator (TEFC) Fresh Water/Finished Consumable Water Single phase, 600 volt 3 phase generators 1200 and 1800 RPM Generators Speed Sensing (Tachometer)Model: 5TR1A - 1800 RPM
Output Range: 5 to 40kW
Standard Integrated Configuration Turbine: Ductile Iron/Close Coupled Seal: Mechanical Shaft Seal Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase Optional Features Safe Water/Low Lead NSF 61/372 Certification Horizontal (frame mount) or Vertical (support stand) Configuration Stainless Steel Total Enclosed Fan-Cooled Generator (TEFC) Fresh Water/Finished Consumable Water Single phase, 600 volt 3 phase generators 1200 and 1800 RPM Generators Speed Sensing (Tachometer)Model: 5TR2 - 1800 RPM
Output Range: 25 to 200kW
Standard Integrated Configuration Turbine: Ductile Iron/Close Coupled Seal: Mechanical Shaft Seal Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase Optional Features Safe Water/Low Lead NSF 61/372 Certification Horizontal (frame mount) or Vertical (support stand) Configuration Stainless Steel Total Enclosed Fan-Cooled Generator (TEFC) Fresh Water/Finished Consumable Water Single phase, 600 volt 3 phase generators 1200 and 1800 RPM Generators Speed Sensing (Tachometer)Model: 5TR4 - 1800 RPM
Output Range: 30 to 225kW
Standard Integrated Configuration Turbine: Ductile Iron/Close Coupled Seal: Mechanical Shaft Seal Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase Optional Features Safe Water/Low Lead NSF 61/372 Certification Horizontal (frame mount) or Vertical (support stand) Configuration Stainless Steel Total Enclosed Fan-Cooled Generator (TEFC) Fresh Water/Finished Consumable Water Single phase, 600 volt 3 phase generators 1200 and 1800 RPM Generators Speed Sensing (Tachometer)Model: 5TR5 - 1800 RPM
Output Range: 5 to 20kW
Standard Integrated Configuration Turbine: Ductile Iron/Close Coupled Seal: Mechanical Shaft Seal Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase Optional Features Safe Water/Low Lead NSF 61/372 Certification Horizontal (frame mount) or Vertical (support stand) Configuration Stainless Steel Total Enclosed Fan-Cooled Generator (TEFC) Fresh Water/Finished Consumable Water Single phase, 600 volt 3 phase generators 1200 and 1800 RPM Generators Speed Sensing (Tachometer)Model: 5TR5A - 1800 RPM
Output Range: 10 to 35kW
Standard Integrated Configuration Turbine: Ductile Iron/Close Coupled Seal: Mechanical Shaft Seal Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase Optional Features Safe Water/Low Lead NSF 61/372 Certification Horizontal (frame mount) or Vertical (support stand) Configuration Stainless Steel Total Enclosed Fan-Cooled Generator (TEFC) Fresh Water/Finished Consumable Water Single phase, 600 volt 3 phase generators 1200 and 1800 RPM Generators Speed Sensing (Tachometer)Model: 6TR1 - 1800 RPM
Output Range: 20 to 90kW
Standard Integrated Configuration Turbine: Ductile Iron/Close Coupled Seal: Mechanical Shaft Seal Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phase Optional Features Safe Water/Low Lead NSF 61/372 Certification Horizontal (frame mount) or Vertical (support stand) Configuration Stainless Steel Total Enclosed Fan-Cooled Generator (TEFC) Fresh Water/Finished Consumable Water Single phase, 600 volt 3 phase generators 1200 and 1800 RPM Generators Speed Sensing (Tachometer)Model: 6TR2 - 1800 RPM
Output Range: 40 to 300kW
Standard Integrated Configuration Turbine: Ductile Iron/Close Coupled Seal: Mechanical Shaft Seal Generator: Standard Open Drip Proof (ODP) 480 volt - 3 phaseModel: 6TR3 - 1800 RPM
Output Range: 25 to 200kW
